When you think of critical industrial components, what comes to mind? Massive turbines, complex circuit boards, or powerful engines? Rarely does the humble flexible metal hose get the credit it deserves. Yet, without this versatile workhorse, countless industries would grind to a halt. From the steam rising from your morning coffee to the fuel powering your car and the water in your home, flexible metal hoses play a vital, often invisible, role in our daily lives.
This comprehensive guide will explore what flexible metal hose is, how it’s made, its myriad applications, and why it’s an indispensable solution for moving fluids and gases in a demanding world.
What Exactly is a Flexible Metal Hose?
At its core, a flexible metal hose is a versatile conduit designed to transport liquids, gases, vapors, and even solid materials like powders and granules. Unlike rigid pipes, it is engineered to flex, bend, and absorb movement, making it the perfect solution for dynamic systems where vibration, thermal expansion, and misalignment are constant challenges.
Think of it as the industrial equivalent of a drinking straw. A rigid straw works if the cup is held perfectly still. But if the cup is moving, or if you need to navigate around a corner, a flexible straw is the only option that prevents a spill. Flexible metal hose performs this same function, but for extreme pressures, temperatures, and corrosive materials.
Anatomy of a Flex Hose: More Than Just a Tube
A standard flexible metal hose is a marvel of engineering, typically consisting of three key components:
-

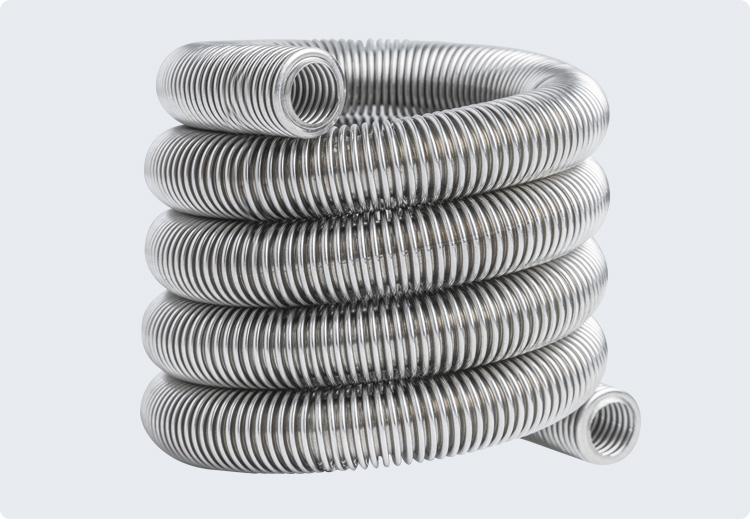

The Corrugated Core (The Bellows): This is the heart of the hose. It’s a thin-walled, seamless tube that is mechanically formed into a series of concentric corrugations (like an accordion or a slinky). This corrugated structure is what grants the hose its flexibility, allowing it to compress, extend, and bend without kinking or collapsing.
-
The Braid (The Protector): The corrugated core, while flexible, is vulnerable to pressure and abrasion. To reinforce it, one or multiple layers of braided wire are woven over the core. This braiding, usually made from stainless steel (though other alloys are used), acts like a supportive cage. It contains the pressure within the hose, increases its tensile strength (resistance to pulling), and protects it from external damage. The number of braids directly correlates to the hose’s pressure rating—more braids mean higher pressure capability.
-
The End Fittings (The Connectors): A hose is useless if it can’t connect to anything. End fittings are the terminals welded, brazed, or crimped to each end of the hose assembly. These can be standard threaded connectors (NPT, BSP), flanges, weld nipples, or any custom configuration needed to integrate seamlessly into an existing system.
Why Choose Metal? The Unbeatable Advantages
In a world full of rubber and plastic hoses, why opt for metal? The answer lies in performance under duress.
-
Extreme Temperature Resistance: Flexible metal hoses, especially those made from stainless steel, can handle temperatures ranging from cryogenic lows of -400°F (-240°C) to scorching highs exceeding 1500°F (815°C). This makes them ideal for applications like steam lines, exhaust systems, and cryogenic fluid transfer.
-
Superior Pressure Handling: With its reinforced braiding, a metal hose can contain immense internal pressure, far surpassing the capabilities of most non-metallic alternatives.
-
Corrosion and Chemical Resistance: Materials like 304 and 316 stainless steel offer excellent resistance to a wide range of chemicals, solvents, and corrosive media, ensuring a long service life even in harsh environments.
-
Durability and Abrasion Resistance: The metal construction is inherently tough, protecting against wear, tear, impact, and crushing forces that would destroy a plastic or rubber hose.
-
Fire Resistance: A critical safety feature. Metal hoses will not burn or contribute to the spread of flame, making them mandatory in safety-critical applications like fuel lines and chemical plants.
-
Vacuum Integrity: The impermeable metal wall prevents air from permeating into the system, which is essential for maintaining a stable vacuum.
A World of Applications: Where You’ll Find Flexible Metal Hose
The versatility of flexible metal hose means it’s used in virtually every sector of the economy.
-
Industrial Manufacturing: Transporting hydraulic fluid, lubricants, coolants, and air in machinery. They absorb vibration from pumps and compressors, preventing fatigue and failure in rigid piping.
-
Chemical and Process Industries: Safely moving aggressive acids, alkalis, and solvents where leakage is not an option.
-
Power Generation: Handling high-pressure steam in power plants and acting as conduit for electrical wiring in power stations.
-
Aerospace and Defense: Used in fuel, hydraulic, and instrumentation lines in aircraft and spacecraft, where extreme reliability under vibration and thermal cycling is paramount.
-
Automotive: In brake lines, power steering systems, and turbocharger intercooler connections, where they manage engine movement and heat.
-
Food and Beverage: Made from ultra-sanitary stainless steel, these hoses are used to transfer ingredients, dairy, beer, and pharmaceuticals, meeting strict FDA and USDA standards for cleanliness.
-
Construction and HVAC: Connecting chillers, boilers, and rooftop units, allowing for thermal expansion and contraction of piping systems without causing stress fractures.
-
Everyday Life: They are in the gas line connecting your stove, the water line to your refrigerator’s ice maker, and the exhaust system of your car.
Selecting the Right Hose: It’s All About the Application
Choosing the wrong hose can lead to failure, downtime, and safety hazards. When specifying a flexible metal hose, engineers must consider:
-
Media: What fluid or gas is being transported? (Determines material compatibility)
-
Temperature: What are the minimum and maximum operating temperatures?
-
Pressure: What is the maximum working pressure? (Always include a safety factor)
-
Environment: Is the hose exposed to chemicals, saltwater, abrasion, or UV radiation?
-
Movement: What type of movement is expected? (Vibration, lateral offset, angular deflection)
-
Length and Size: Getting the correct length is crucial to avoid putting stress on the assembly.
Conclusion: The Flexible Backbone of Modern Infrastructure
The flexible metal hose is a testament to the idea that the most crucial components are often the ones we never see. It is a simple solution to a complex set of problems—movement, heat, pressure, and corrosion. By providing a durable, reliable, and adaptable connection, it ensures the smooth and safe operation of the systems that power our world.
Whether you’re an engineer designing a new system or a homeowner wondering what’s behind your appliance, understanding the value of this unsung hero offers a new appreciation for the intricate and resilient networks that make modern life possible. When reliability can’t be compromised, industry turns to the flexible strength of metal hose.
